Thermorail Straight/Round 12Volt Vertical Bar 900mm 22Watts – Brushed Gun Metal

Price:

Brushed Gunmetal finish complements modern bathroom fittings
Compact vertical design ideal for limited wall space
Safe 12V operation with transformer included
Heats to 50–55°C when towel is draped over the rail
IP55 rated for use near wet bathroom zones
Concealed hardwired installation (top or bottom)

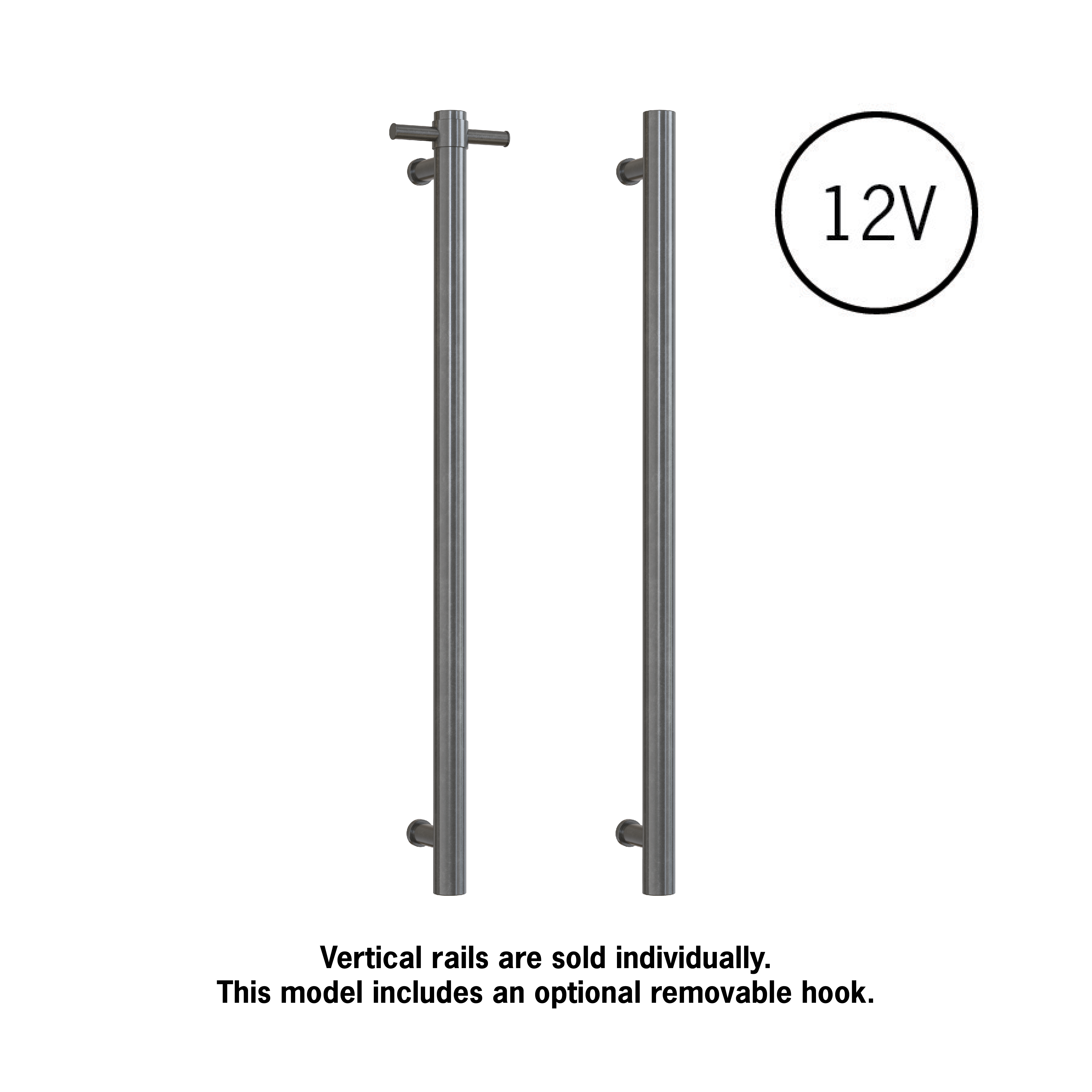

Optional towel hook supplied for easy hanging and drying

SKU: TH.VS900HBGM

Description

VS900HBGM Brushed Gun Metal Round Vertical Single Heated Rail

The VS900HBGM Brushed Gun Metal Round Vertical Heated Towel Rail brings both elegance and practicality to modern bathrooms. With its sleek round profile and brushed gun metal finish, it complements contemporary tapware and fittings perfectly. Operating on a safe 12-volt system with the included transformer, this rail reaches 50–55°C when a towel is draped over it and around 35°C when bare. The optional towel hook provides a convenient hanging solution while maintaining a clean, minimalist aesthetic.

Product Code

VS900HBGM

Output

22W

Voltage

12V

IP Rating

IP55

Warranty

7 Years

Lead Length

Finish

Brushed Gun Metal

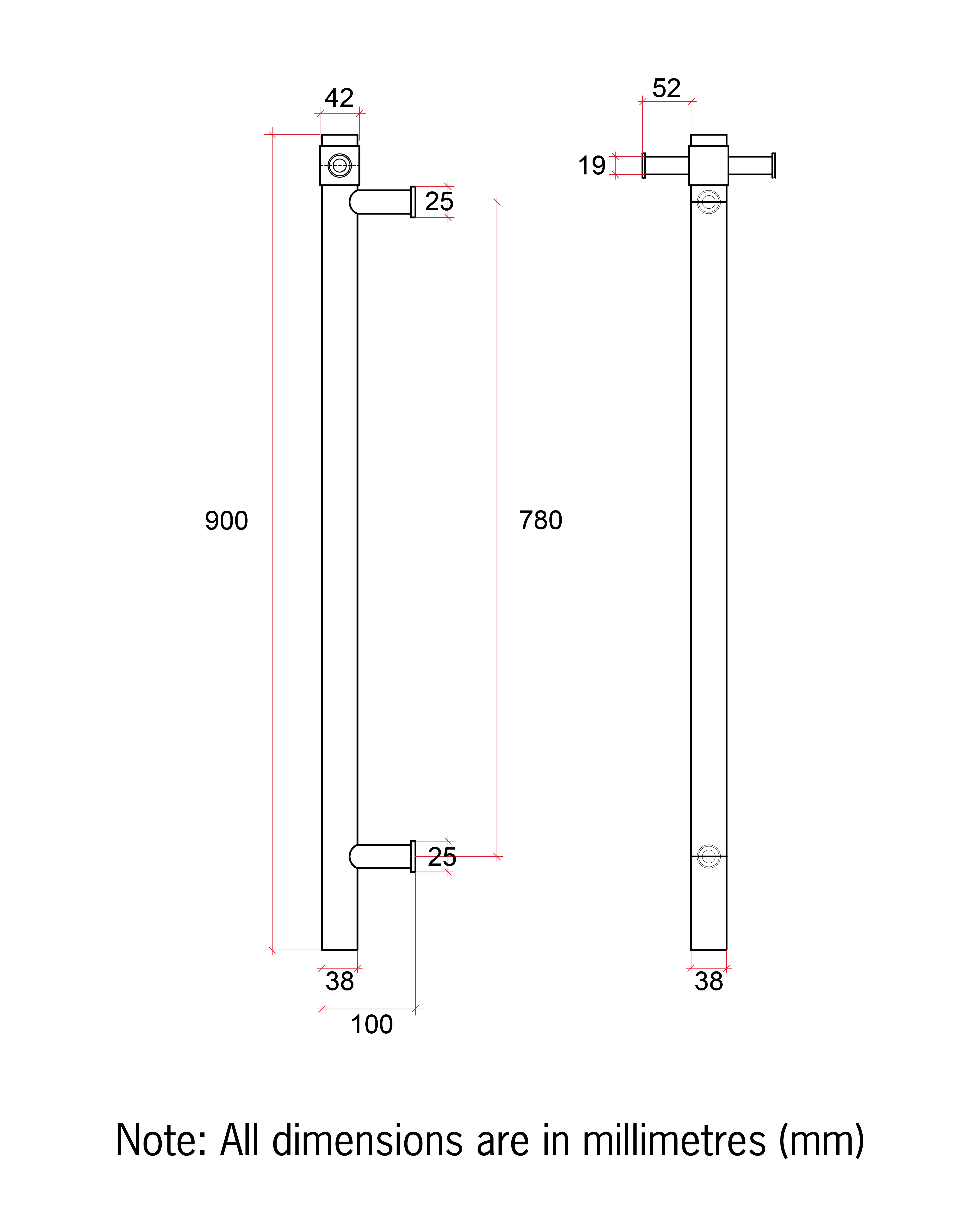

Dimensions

W142 × H900 × D100 mm

Wiring Type

Concealed (hardwired)

Wiring Position

Top or bottom

Mounting Distance

780 mm (top to bottom)

Key Features & Benefits

7-Year Warranty

Backed by a 7-year manufacturer warranty for lasting reliability.

Safe 12V Operation

Low-voltage 12V system ensures safe installation anywhere in the bathroom.

Brushed Gun Metal Finish

Elegant brushed gun metal complements modern fittings and accessories.

Towel Hook Included

Supplied with an optional towel hook for convenient hanging and drying.

Safe, Efficient & Flexible

Brushed gun metal finish enhances modern bathroom design
Top or bottom concealed wiring for flexible installation
IP55 rated for safe use near water zones
Can be retrofitted to tiled walls with available power access
Each rail supplied with its own 12V transformer
Optional towel hook included for convenience
Recommended spacing between rails: approx. 200mm
Efficient 22W heating ensures low power use

Frequently Asked Questions

Can vertical rails be retrofitted to existing walls?

Yes. The rail includes a transformer and all required mounts. If your electrician can route power to the mounting points, it can be retrofitted to tiled walls. The transformer can be placed behind a switch plate or in the roof cavity.

Do 12V rails heat as well as 240V models?

Yes. Heat output is determined by wattage, not voltage. A 12V rail with equivalent wattage performs like a 240V rail.

What temperature does the rail reach?

Approximately 35°C without a towel and 50–55°C beneath a towel for optimal drying.

Do I need a separate transformer for each rail?

Yes. Each rail is supplied with its own transformer. For safety, use one transformer per rail.

Where should the transformer be installed?

Install within 2 metres of the rail, either in the ceiling or wall cavity. If inside a wall, position it behind a switch plate with proper ventilation.

What spacing is recommended between multiple rails?

A spacing of around 200mm is ideal but can be adjusted depending on towel hook placement.

Can I wire multiple rails to one timer?

Yes, multiple rails can be connected to one timer if the total load does not exceed the timer’s capacity. Each rail must still connect through its own transformer before the timer.

PLEASE NOTE: Specifications are for information purposes only and may change with product development. Confirm all measurements and details on site or with the manufacturer before drilling.

Additional information

Shape	Round
Colour	Brushed Gun Metal
Product Type	Heated Towel Rails
Brand	THERMOGROUP
Size	900mm
